PARK ENGINEERING

SMALL, POWERFUL, COMPACT, HIGH EFFICIENCY

AC GEAR MOTORS

We introduce our various wide range AC GEAR MOTOR with high torque & efficiency.
MOTOR-PARK gearmotors will give you enough satisfaction
and happiness for your needs.
Application : conveyor automation system, robot, general industries.

SMALL, POWERFUL, COMPACT, HIGH EFFICIENCY

DC GEAR MOTOR, ACTUATOR

SMALL, POWERFUL, COMPACT, HIGH EFFICIENCY

MIGHTY WORM GEARBOX

SMALL, POWERFUL, COMPACT, HIGH EFFICIENCY

AC STANDARD GEAR MOTOR

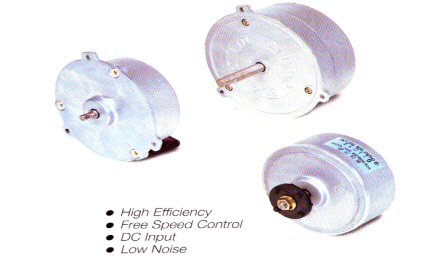

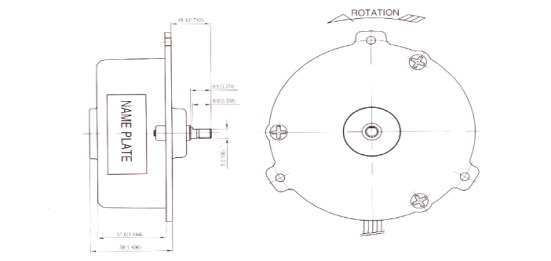

BLDC FAN MOTOR

BLDC

- BURNER-SHOW CASE

- FAN & BLOWER MOTOR

ITEM NO.	INPUT (V)	CURRENTS (A)	OUTPUT (W)	PATED TORQUE (OZ·IN)	PATED TORQUE (rpm)	USE FAN
B76-806A	24	1.3	7.7	6.9	1600	PROPELLER
B76-806B	42	1.4	30.0	8.3	4700	BLOWER
B88-412A	35	1.4	35.9	19.5	2500	BLOWER

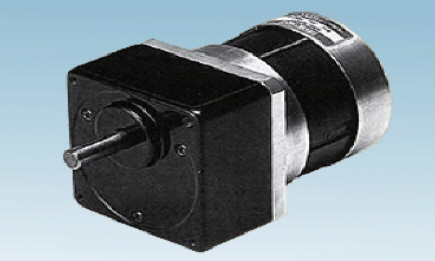

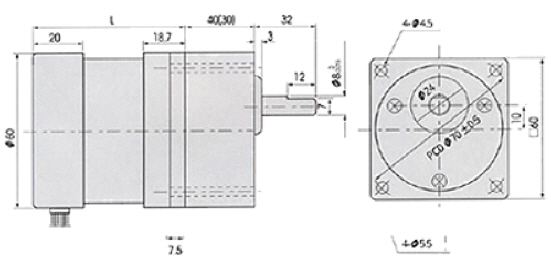

BLDC GEAR MOTOR

MODEL	FREQUENCY						WEIGHT (kg)	LENGTH L (mm)
MODEL	VOLTAGE(V)	OUTPUT(W)	CURRENT(A)	SPEED(RPM)	TORQUE(kgf-cm)	RATING	WEIGHT (kg)	LENGTH L (mm)
DG60-NO12005	12	5	0.7	1-1,000	0.48-30	CONT	0.8	52.7
DG60-NO12010	12	10	1.4	1-1,000	0.99-30	CONT	0.9	62.7
DG60-NO12015	12	15	2.1	1-1,000	1.47-30	CONT	1	72.7
DG60-NO24010	24	10	0.7	1-1,000	0.99-30	CONT	0.8	52.7
DG60-NO24020	24	20	1.3	1-1,000	1.95-30	CONT	0.9	62.7
DG60-N24030	24	30	2	1-1,000	2.94-30	CONT	1	72.7
DG60-N220020	220	20	0.4	1-1,000	1.95-30	CONT	0.8	52.7
DG60-N220040	220	40	0.7	1-1,000	3.9-30	CONT	0.9	62.7
DG60-N220060	220	60	0.9	1-1,000	5.85-30	CONT	1	72.7

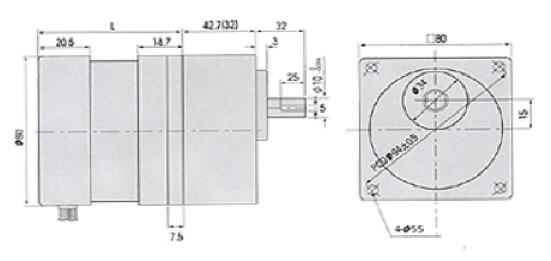

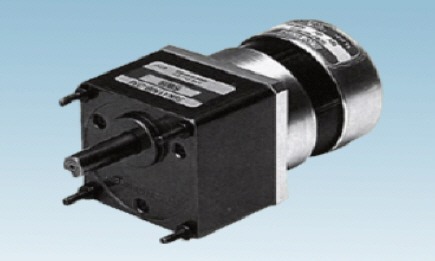

BLDC GEAR MOTOR(2)

MODEL	FREQUENCY						WEIGHT (kg)	LENGTH L (mm)
MODEL	VOLTAGE(V)	OUTPUT(W)	CURRENT(A)	SPEED(RPM)	TORQUE(kgf-cm)	RATING	WEIGHT (kg)	LENGTH L (mm)
DG80-NO12010	12	10	1.4	1-1,000	0.99-80	CONT	1.9	53.2
DG80-NO12015	12	15	2.1	1-1,000	1.47-80	CONT	2	63.2
DG80-NO12020	12	20	2.8	1-1,000	1.95-80	CONT	2.1	73.2
DG80-NO12015	24	15	1	1-1,000	1.47-80	CONT	1.9	53.2
DG80-NO12025	24	25	1.7	1-1,000	9.9-80	CONT	2	63.2
DG80-NO12035	24	35	2.4	1-1,000	13.8-80	CONT	2.1	73.2
DG80-NO12040	220	40	0.4	1-1,000	3.9-80	CONT	1.9	53.2
DG80-NO12060	220	60	0.5	1-1,000	5.85-80	CONT	2	63.2
DG80-NO12090	220	90	0.7	1-1,000	8.7-80	CONT	2.1	73.2
