CONDENSER FAN MOTOR

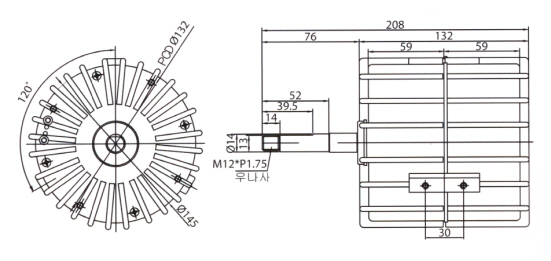

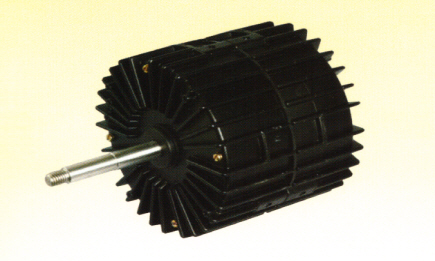

CONDENSER RUN INDUCTION FAN MOTOR (Freezer)

MODEL	POLE	VOLTAGE	FREQUENCY	RATED LOAD					STARTING TORQUE	PEAK TORQUE	CORE SIZE	PHASE
	POLE	VOLTAGE	FREQUENCY	CURRENT	INPUT	SPEED	TORQUE	OUT PUT	STARTING TORQUE	PEAK TORQUE
	P	V	Hz	A	W	RPM	kg.cm	W	Kg.cm	Kg.cm
DAI-12254A	4	220	60	1.1	238	1550	7.5	119	3.3	11.6	ø 121 X 25t	single
DAI-12304A	4	220	60	1.6	355	1550	9.8	156	4.0	13.5	ø 121 X 30t	single
DAI-12306A	6	220	60	1.8	360	1050	9.0	97	4.5	12.5	ø 121 X 30t	single
DAT-12256A	6	220/380	60	0.7/0.4	182	1050	9.6	104	11.6	18.4	ø 121 X 25t	three
DAT-12304B	4	220/380	60	1.4/0.8	380	1600	14.2	233	17.9	24.5	ø 121 X 60t	three

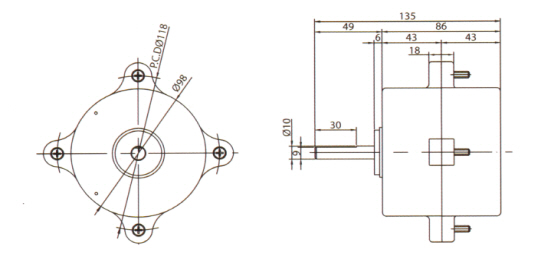

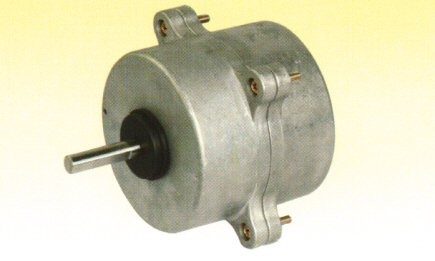

CONDENSER RUN INDUCTION FAN MOTOR (Freezer)

MODEL	POLE	VOLTAGE	FREQUENCY	RATED LOAD					STARTING TORQUE	PEAK TORQUE	CORE SIZE	PHASE
	POLE	VOLTAGE	FREQUENCY	CURRENT	INPUT	SPEED	TORQUE	OUT PUT	STARTING TORQUE	PEAK TORQUE
	P	V	Hz	A	W	RPM	kg.cm	W	Kg.cm	Kg.cm
DAI-95154A	4	220	60	0.55	110	1450	4.5	67.0	1.5	6.3	ø 95 X 15t	single
DAI-95254A	4	220	60	0.60	129	1450	5.6	83.4	2.0	7.5	ø 95 X 25t	single
DAI-95304A	4	220/380	60	0.7/0.4	185	1600	8.0	131	10.5	13.6	ø 95 X 30t	three

CONDENSER RUN INDUCTION FAN MOTOR (Freezer)

MODEL	POLE	VOLTAGE	FREQUENCY	RATED LOAD					STARTING TORQUE	PEAK TORQUE	CORE SIZE	PHASE
	POLE	VOLTAGE	FREQUENCY	CURRENT	INPUT	SPEED	TORQUE	OUT PUT	STARTING TORQUE	PEAK TORQUE
	P	V	Hz	A	W	RPM	kg.cm	W	Kg.cm	Kg.cm
DAI-95154A	4	220	60	0.55	110	1450	4.5	67.0	1.5	6.3	ø 95 X 15t	single
DAI-95254A	4	220	60	0.60	129	1450	5.6	83.4	2.0	7.5	ø 95 X 25t	single
DAI-95304A	4	220/380	60	0.7/0.4	185	1600	8.0	131	10.5	13.6	ø 95 X 30t	three

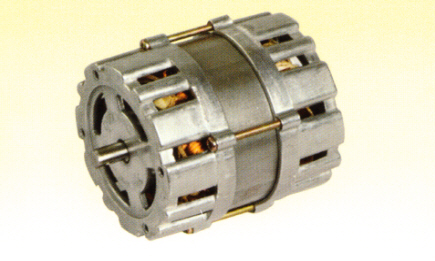

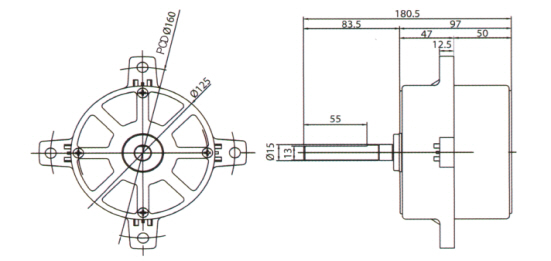

CONDENSER RUN INDUCTION BLOWER MOTOR (Fume Ventilator)

MODEL	POLE	VOLTAGE	FREQUENCY	RATED LOAD					STARTING TORQUE	PEAKTORQUE	CORE SIZE	SHAFT ( ø )
	POLE	VOLTAGE	FREQUENCY	CURRENT	INPUT	SPEED	TORQUE	OUT PUT	STARTING TORQUE	PEAKTORQUE
	P	V	Hz	A	W	RPM	kg.cm	W	Kg.cm	Kg.cm
DAI-13504A	4	115	60	8.6	975	1600	27.5	452	13.3	37.5	ø 139 X 50t	15
DAI-13504B	4	220	60	4.4	967	1600	28.0	460	14.0	39.6	ø 139 X 50t	15

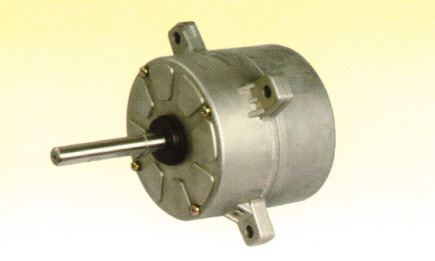

CONDENSER RUN INDUCTION MOTOR (Massage System)

MODEL	POLE	VOLTAGE	FREQUENCY	RATED LOAD					STARTING TORQUE	PEAK TORQUE	CORE SIZE	SHAFT ( ø )
	POLE	VOLTAGE	FREQUENCY	CURRENT	INPUT	SPEED	TORQUE	OUT PUT	STARTING TORQUE	PEAK TORQUE
	P	V	Hz	A	W	RPM	kg.cm	W	Kg.cm	Kg.cm
DAI-66232A	2	120	60	0.28	32.5	3300	0.17	6.4	0.55	0.75	ø 66 X 23t	8
DAI-66232B	2	220	50	0.13	27.5	3300	0.20	6.8	0.50	0.67	ø 66 X 23t	8

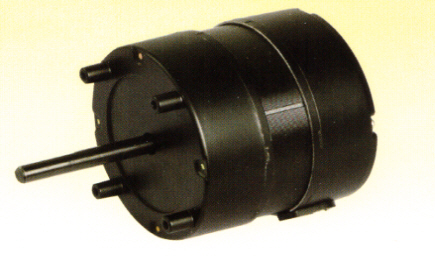

CONDENSER RUN INDUCTION BLOWER MOTOR (Air Cleaner)

MODEL	POLE	VOLTAGE	FREQUENCY	RATED LOAD					STARTING TORQUE	PEAKTORQUE	CORE SIZE	SHAFT ( ø )
	POLE	VOLTAGE	FREQUENCY	CURRENT	INPUT	SPEED	TORQUE	OUT PUT	STARTING TORQUE	PEAKTORQUE
	P	V	Hz	A	W	RPM	kg.cm	W	Kg.cm	Kg.cm
DAI-83154A	4	220	60	0.25	54.5	1200	1.44	17.7	1.12	1.50	ø 83 X 15t	8
DAI-83154B	4	230	50	0.30	61.0	1000	1.36	14.0	1.25	1.46	ø 83 X 22t	8

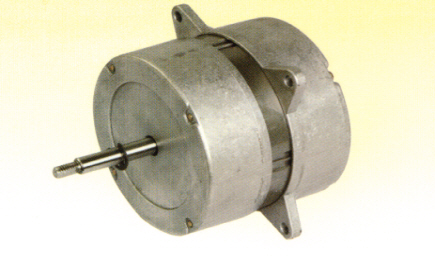

CONDENSER RUN INDUCTION FAN MOTOR (Boiler Burnner)

MODEL	POLE	VOLTAGE	FREQUENCY	RATED LOAD					STARTING TORQUE	PEAK TORQUE	CORE SIZE	SHAFT ( ø )
	POLE	VOLTAGE	FREQUENCY	CURRENT	INPUT	SPEED	TORQUE	OUT PUT	STARTING TORQUE	PEAK TORQUE
	P	V	Hz	A	W	RPM	kg.cm	W	Kg.cm	Kg.cm
DAI-83152A	2	220	60	0.15	25.5	3350	0.50	17.2	0.44	1.13	ø 83 X 15t	8
DAI-83222B	2	220	60	0.13	27.0	3350	0.68	23.2	0.53	1.80	ø 83 X 22t	8
DAI-83282B	2	220	60	0.27	62.8	3350	1.12	38.5	0.74	2.75	ø 83 X 28t	8
