SMALL, POWERFUL, COMPACT, HIGH EFFICIENCY
AC GEAR MOTORS

We introduce our various wide range AC GEAR MOTOR with high torque & efficiency.
MOTOR-PARK gearmotors will give you enough satisfaction
and happiness for your needs.
Application : conveyor automation system, robot, general industries.

SMALL, POWERFUL, COMPACT, HIGH EFFICIENCY
DC GEAR MOTOR, ACTUATOR

We introduce our various wide range AC GEAR MOTOR with high torque & efficiency.
MOTOR-PARK gearmotors will give you enough satisfaction
and happiness for your needs.
Application : conveyor automation system, robot, general industries.

SMALL, POWERFUL, COMPACT, HIGH EFFICIENCY
MIGHTY WORM GEARBOX

We introduce our various wide range AC GEAR MOTOR with high torque & efficiency.
MOTOR-PARK gearmotors will give you enough satisfaction
and happiness for your needs.
Application : conveyor automation system, robot, general industries.

SMALL, POWERFUL, COMPACT, HIGH EFFICIENCY
AC STANDARD GEAR MOTOR

We introduce our various wide range AC GEAR MOTOR with high torque & efficiency.
MOTOR-PARK gearmotors will give you enough satisfaction
and happiness for your needs.
Application : conveyor automation system, robot, general industries.

PRODUCTS

DC MICRO GEARMOTOR 2

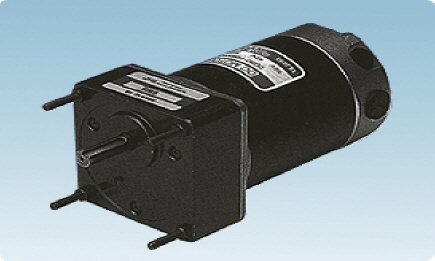

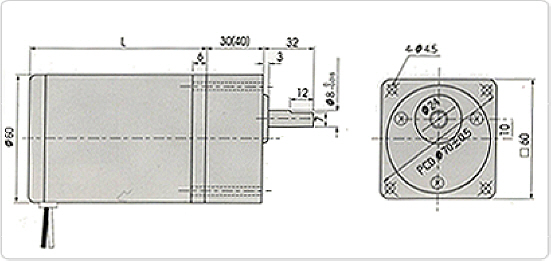

DC GEARED MOTOR ㅁ60mm

사진
도면
MODEL RATED WEIGHT
(kg)		 LENGTH L(mm)
VOLTAGE(V) OUTPUT(W) CURRENT(A) SPEED(RPM) TORQUE(kgf-cm) RATING
DG60-F012005 12 5 0.6 1-1,000 0.49-30 CONT 1.0 79
DG60-F012010 12 10 1.2 1-1,000 0.98-30 CONT 1.1 89
DG60-F012015 12 15 1.8 1-1,000 1.46-30 CONT 1.3 99
DG60-F012020 12 20 2.4 1-1,000 1.95-30 CONT 1.5 109
DG60-F024010 24 10 0.6 1-1,000 0.97-30 CONT 1.0 79
DG60-F024020 24 20 1.2 1-1,000 1.95-30 CONT 1.1 89
DG60-F024030 24 30 1.8 1-1,000 2.92-30 CONT 1.3 99
DG60-F024050 24 50 3.0 1-1,000 4.87-30 CONT 1.5 109
DG60-F090010 90 10 0.2 1-1,000 0.97-30 CONT 1.0 79
DG60-F090030 90 30 0.5 1-1,000 2.92-30 CONT 1.1 89
DG60-F090050 90 50 0.8 1-1,000 4.87-30 CONT 1.3 99
DG60-F090080 90 80 1.2 1-1,000 7.8-30 CONT 1.5 109
DG60-F012020 12 20 2.4 1-1,000 1.95-30 CONT 1.5 109

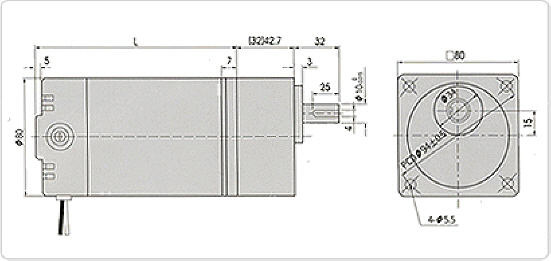

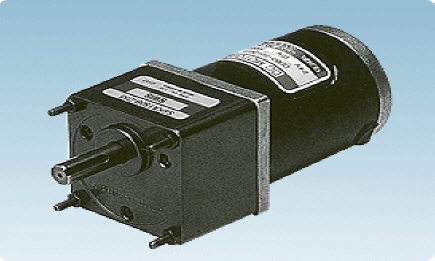

DC GEARED MOTOR ㅁ80mm

사진
도면
MODEL RATED WEIGHT
(kg)		 LENGTH L(mm)
VOLTAGE(V) OUTPUT(W) CURRENT(A) SPEED(RPM) TORQUE(kgf-cm) RATING
DG80-F012010 12 10 1.1 1-1,000 1.0-80 CONT 1.9 121.5
DG80-F012025 12 25 2.5 1-1,000 2.35-80 CONT 2.0 121.5
DG80-F012040 12 40 4.2 1-1,000 3.9-80 CONT 2.4 141.5
DG80-F024025 24 25 1.3 1-1,000 2.34-80 CONT 2.0 121.5
DG80-F024035 24 35 2 1-1,000 3.45-80 CONT 2.1 121.5
DG80-F024040 24 40 2 1-1,000 3.9-80 CONT 2.4 141.5
DG80-F024060 24 60 3.2 1-1,000 5.7-80 CONT 2.4 141.5
DG80-F090025 90 25 0.4 1-1,000 2.34-80 CONT 2.0 121.5
DG80-F090040 90 40 0.8 1-1,000 3.9-80 CONT 2.1 121.5
DG80-F090060 90 60

0.95

 1-1,000 5.7-80 CONT 2.4 141.5
DG80-F0180050 180 50 0.4 1-1,000 4.86-80 CONT 2.1 121.5
DG80-F0180090 180 90 0.7 1-1,000 8.7-80 CONT 2.3 141.5
DG80-F220060 220 60 0.4 1-1,000 5.85-80 CONT 2.1 121.5
DG80-F220120 220 120 0.72 1-1,000 11.67-80 CONT 2.4 141.5
DG80-F012020 12 20 2.4 1-1,000 1.95-80 CONT 1.5 109
