PARK ENGINEERING

SMALL, POWERFUL, COMPACT, HIGH EFFICIENCY

AC GEAR MOTORS

We introduce our various wide range AC GEAR MOTOR with high torque & efficiency.
MOTOR-PARK gearmotors will give you enough satisfaction
and happiness for your needs.
Application : conveyor automation system, robot, general industries.

SMALL, POWERFUL, COMPACT, HIGH EFFICIENCY

DC GEAR MOTOR, ACTUATOR

SMALL, POWERFUL, COMPACT, HIGH EFFICIENCY

MIGHTY WORM GEARBOX

SMALL, POWERFUL, COMPACT, HIGH EFFICIENCY

AC STANDARD GEAR MOTOR

FAN MOTOR

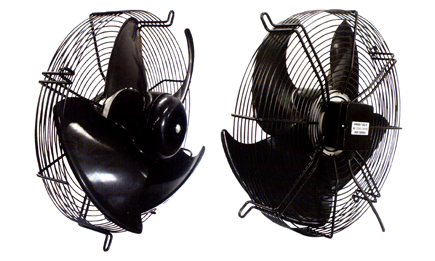

AW450 SERIES

> FAN MATERIAL : PP+GF30

> MOTOR DETAILS : B CLASS, IP54

> WEIGHT : 6.7 Kg

> MAX. AIR VOLUME : 72 CMM

ITEM NO.	VOLTAGE (V)	FREQUENCY (Hz)	PHASE (PH)	POLES (P)	INPUT (W)	CURRENTS (A)	SPEED (RPM)	NOISE (dBA)
AW450S-DA2-S	220	60	SINGL	6	173	0.80	1,046	57
	220	50	SINGLE	6	130	0.62	922	54
	240	50	SINGLE	6	135	0.62	932	54
AW450T-DA3-S	380	50	THREE	6	124	0.37	932	54
AW450T-DA3-S	380	60	THREE	6	151	0.34	1,067	57
AW450T-DF3-S (FREE VOLTAGE)	380	50	THREE	6	117	0.31	939	54
	380	60			160	0.32	1,080	57
	460	50			140	0.38	956	54
	460	60			180	0.35	1,116	58
AW450T-DI3-S (INVERTER & PHASE CONTROL)	380	50	THREE	6	117	0.31	939	54
AW450T-DI3-S (INVERTER & PHASE CONTROL)	380	60	THREE	6	160	0.32	1,080	57
AW450T-DC3-S (BUILT-IN CONTROLLER)	380	50	THREE	6	117	0.31	939	54
AW450T-DC3-S (BUILT-IN CONTROLLER)	380	60	THREE	6	160	0.32	1,080	57
