AC STANDARD GEAR MOTOR

AC UNIVERSAL MOTOR

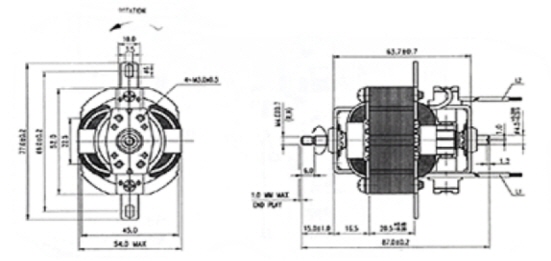

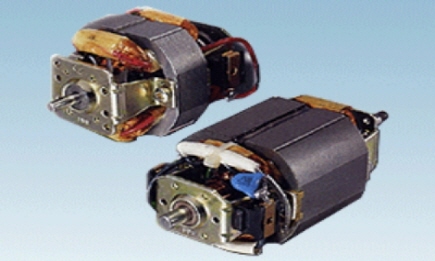

PH/PL SERIES

MODEL	RATING			ON LOAD
MODEL	VOLT	Hz	TORQUE g.cm	SPEED rpm	CURRENT A	OUTPUT W	EFFICIENCY
PL20A-19	110	60	353.8	10622	0.8	37.63	46.65
PH20A-45	230	50	348.2	9499	0.321	33.26	48.26
PL30A-01	120	60	560	11500	1.22	66.05	50.2
PH30A-01	220	50	530	11200	0.61	60.88	50.7
PL35N-01	100	50	350	14000	1.08	50.26	48.2
PH35A-02	220	50	970	10300	0.93	102.47	55.2
PL40N-03	120	60	600	11700	1.22	72.0	50.70
PH40A-02	220	50	700	12800	0.76	91.9	59

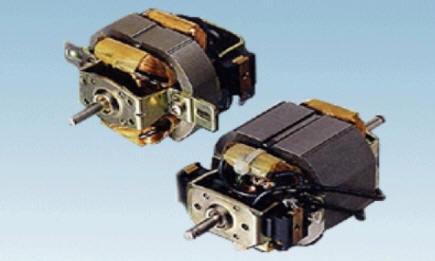

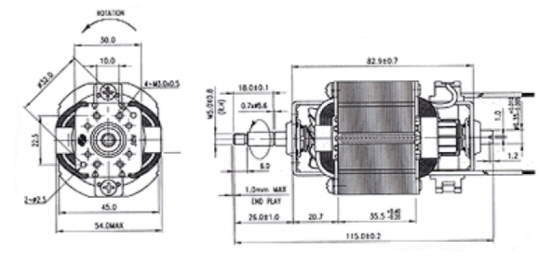

QH/QL SERIES

MODEL	RATING			ON LOAD
MODEL	VOLT	Hz	TORQUE g.cm	SPEED rpm	CURRENT A	OUTPUT W	EFFICIENCY
QL12A-01	120	60	220	10400	0.54	23.47	37.6
QL12A-02	220	50	260	12500	0.36	33.33	45.5
QL15A-04	120	60	260	7800	0.51	20.8	35.0
QH15A-04	240	50	250	11800	0.29	30.26	48.0
QL20A-14	120	60	440	10000	0.75	45.12	53.5
QH20A-04	220	50	750	13000	0.90	100.0	54.0
QL25A-01	120	60	540	11000	0.96	60.92	55.5
QH25A-03	240	50	560	11400	0.57	65.48	50.5
