PARK ENGINEERING

SMALL, POWERFUL, COMPACT, HIGH EFFICIENCY

AC GEAR MOTORS

We introduce our various wide range AC GEAR MOTOR with high torque & efficiency.
MOTOR-PARK gearmotors will give you enough satisfaction
and happiness for your needs.
Application : conveyor automation system, robot, general industries.

SMALL, POWERFUL, COMPACT, HIGH EFFICIENCY

DC GEAR MOTOR, ACTUATOR

SMALL, POWERFUL, COMPACT, HIGH EFFICIENCY

MIGHTY WORM GEARBOX

SMALL, POWERFUL, COMPACT, HIGH EFFICIENCY

AC STANDARD GEAR MOTOR

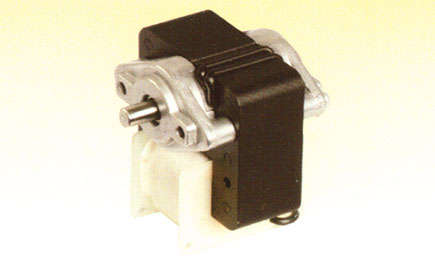

SHADED POLE FAN MOTOR

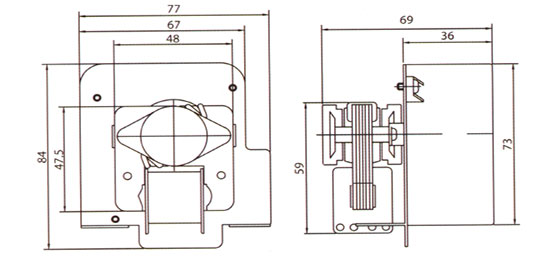

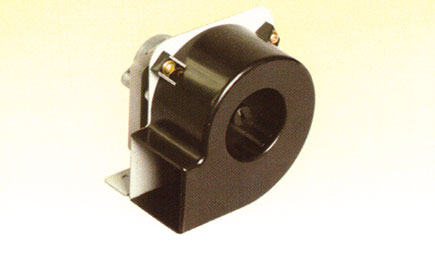

SHADED PLOE INDUCTION BLOWER MOTOR (Dish Dryer)

MODEL	POLE	VOLTAGE	FREQUENCY	RATED LOAD					STARTING TORQUE	PEAK TORQUE	CORE SIZE	SHAFT ( ø )
	POLE	VOLTAGE	FREQUENCY	CURRENT	INPUT	SPEED	TORQUE	OUT PUT	STARTING TORQUE	PEAK TORQUE
	P	V	Hz	A	W	RPM	Kg.cm	W	Kg.cm	Kg.cm
DAI-4082A	2	220	60	0.06	6.5	2400	-	-	-	-	ㅁ48X8t	4
DAI-4102B	2	220	60	0.08	7.0	2500	-	-	-	-	ㅁ48X10t	4

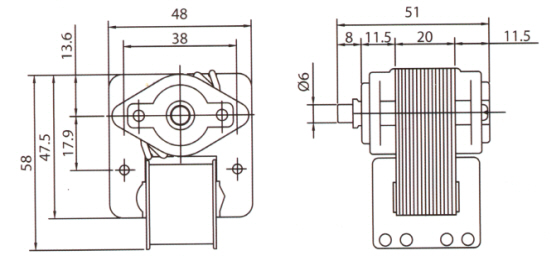

SHADED PLOE INDUCTION MOTOR (Mat Boiler)

MODEL	POLE	VOLTAGE	FREQUENCY	RATED LOAD					STARTING TORQUE	PEAK TORQUE	CORE SIZE	SHAFT ( ø )
	POLE	VOLTAGE	FREQUENCY	CURRENT	INPUT	SPEED	TORQUE	OUT PUT	STARTING TORQUE	PEAK TORQUE
	P	V	Hz	A	W	RPM	Kg.cm	W	Kg.cm	Kg.cm
DAI-4202A	2	220	60	0.61	8.0	3000	28	0.8	45	528	ㅁ48X20t	6
DAI-4102B	2	230	50	0.63	7.8	2500	29	0.7	54	63	ㅁ48X20t	6

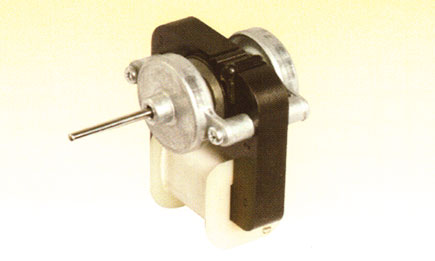

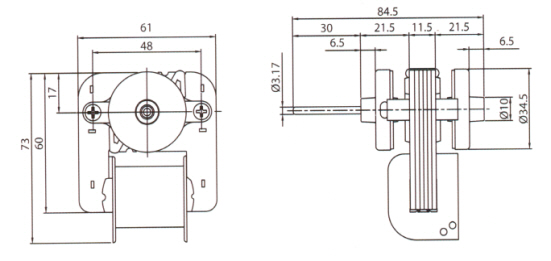

SHADED PLOE INDUCTION FAN MOTOR (Refrigerator)

MODEL	POLE	VOLTAGE	FREQUENCY	RATED LOAD					STARTING TORQUE	PEAK TORQUE	CORE SIZE	SHAFT ( ø )
	POLE	VOLTAGE	FREQUENCY	CURRENT	INPUT	SPEED	TORQUE	OUT PUT	STARTING TORQUE	PEAK TORQUE
	P	V	Hz	A	W	RPM	Kg.cm	W	Kg.cm	Kg.cm
DAI-6122B	2	220	60	0.03	4.2	2100	25	0.5	23	33	ㅁ61X12t	3.17
DAI-6122C	2	230	50	0.04	4.3	2400	29	0.7	25	37	ㅁ61X12t	3.17

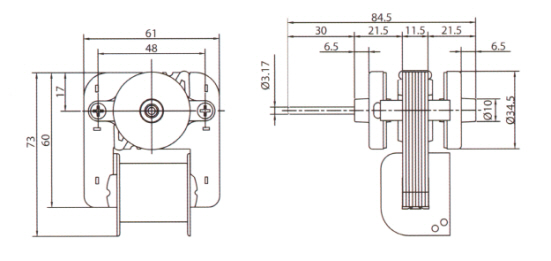

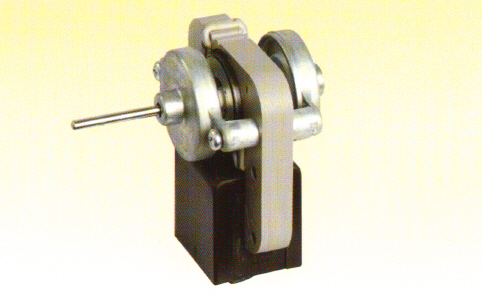

SHADED PLOE INDUCTION FAN MOTOR (Refrigerator)

MODEL	POLE	VOLTAGE	FREQUENCY	RATED LOAD					STARTING TORQUE	PEAK TORQUE	CORE SIZE	SHAFT( ø )
	POLE	VOLTAGE	FREQUENCY	CURRENT	INPUT	SPEED	TORQUE	OUT PUT	STARTING TORQUE	PEAK TORQUE
	P	V	Hz	A	W	RPM	Kg.cm	W	Kg.cm	Kg.cm
DAI-6122D	2	120	60	0.08	5.5	2450	28	0.7	26	35	ㅁ61X12t	3.17
DAI-6122E	2	220	60	0.05	5.0	2200	29	0.7	24	34	ㅁ61X12t	3.17
DAI-6122F	2	230	50	0.06	4.7	2450	34	0.8	22	39	ㅁ61X12t	3.17

SHADED PLOE INDUCTION FAN MOTOR (Freezer, Show case)

MODEL	POLE	VOLTAGE	FREQUENCY	RATED LOAD					STARTING TORQUE	PEAK TORQUE	CORE SIZE	SHAFT ( ø )
	POLE	VOLTAGE	FREQUENCY	CURRENT	INPUT	SPEED	TORQUE	OUT PUT	STARTING TORQUE	PEAK TORQUE
	P	V	Hz	A	W	RPM	Kg.cm	W	Kg.cm	Kg.cm
DAI-6202A	2	120	60	0.67	41.8	2100	0.32	6.8	0.20	0.35	ㅁ61X20t	5
DAI-6202B	2	220	60	0.26	31.3	1800	0.19	3.3	0.16	0.27	ㅁ61X20t	5
DAI-6202C	2	230	50	0.19	24.0	1700	0.21	3.6	0.17	0.24	ㅁ61X20t	5

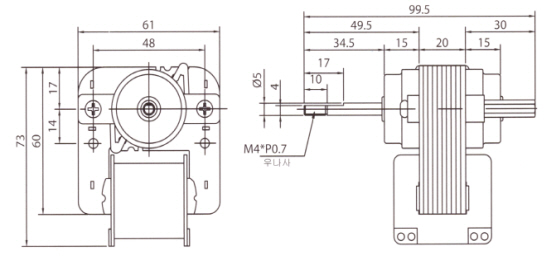

SHADED PLOE INDUCTION MOTOR (Agitator)

MODEL	POLE	VOLTAGE	FREQUENCY	RATED LOAD					STARTING TORQUE	PEAK TORQUE	CORE SIZE	SHAFT ( ø )
	POLE	VOLTAGE	FREQUENCY	CURRENT	INPUT	SPEED	TORQUE	OUT PUT	STARTING TORQUE	PEAK TORQUE
	P	V	Hz	A	W	RPM	Kg.cm	W	Kg.cm	Kg.cm
DAI-6302A	2	220	60	0.34	35.0	3300	0.22	7.5	0.18	0.36	ㅁ61X30t	5
DAI-6302B	2	220	60	0.36	38.0	3400	0.28	9.8	0.20	0.45	ㅁ61X30t	5
